A concrete slab can look like a clear work surface right up until a drill bit hits a conduit, a saw cuts a post-tension cable, or a core barrel damages embedded reinforcement. This guide to concrete scanning services explains what scanning can identify, when to schedule it, and how to use the findings to make safer decisions before work begins.
For contractors, property managers, remodelers, and homeowners, concrete scanning is not an optional extra when the consequences of a strike are serious. It is a practical pre-work step that helps protect people, preserve infrastructure, and keep a project moving.
What Concrete Scanning Services Do
Concrete scanning identifies features concealed within a slab, wall, deck, or other concrete structure. Depending on the structure and the scanning method, a qualified technician may locate reinforcing steel, post-tension cables, conduits, electrical lines, plumbing, voids, and other embedded elements.
The goal is not simply to produce markings on concrete. The goal is to provide usable information before coring, cutting, drilling, demolition, or anchoring. A clear scan allows the project team to select a safer work location, adjust the depth of a penetration, or stop and investigate an unexpected condition before damage occurs.

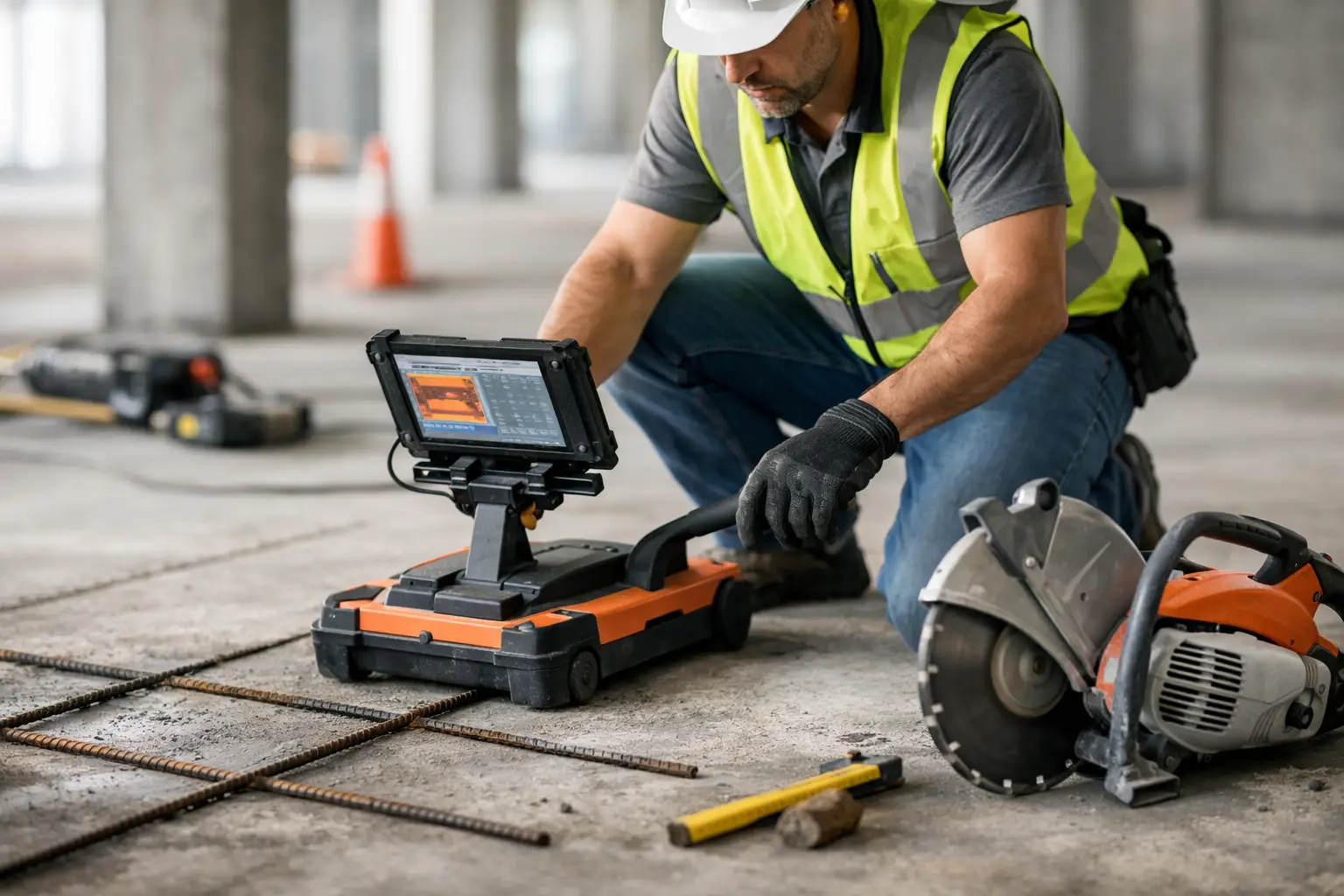

Ground penetrating radar, commonly called GPR, is the primary tool for many concrete scanning projects. It sends radar energy into the concrete and reads the signals that return from changes in material or objects below the surface. An experienced operator interprets those readings, marks likely targets, and documents the work area as needed.
In some situations, concrete X-ray may be the better choice. X-ray can provide detailed imaging in difficult conditions, but it requires access to both sides of the concrete and involves additional safety controls. The right method depends on the slab thickness, access, reinforcement pattern, and the question that needs to be answered.
Why Scanning Must Happen Before Penetrations
A missed object can turn a routine task into an emergency. Striking an energized conduit can cause injury, arc flash risk, shutdowns, and equipment damage. Damaging a water line or process pipe can flood a work area and halt operations. Cutting a post-tension cable can release stored force without warning, creating a severe hazard for anyone nearby.
Even when no one is hurt, the cost of an unplanned strike adds up quickly. There may be emergency repairs, engineering review, concrete restoration, schedule delays, tenant disruptions, and liability questions. On commercial and municipal projects, a small undocumented penetration can affect far more than the crew making the cut.
Scanning is especially valuable when drawings are unavailable, incomplete, or old. As-built plans can help establish expectations, but they do not always reflect field changes, abandoned systems, renovations, or undocumented repairs. The slab itself is the condition that matters at the point of work.
A Guide to Concrete Scanning Services by Project Type
Concrete scanning should be part of the planning process whenever your work will penetrate, remove, or rely on an existing concrete structure. The most common requests involve core drilling for new mechanical, electrical, and plumbing routes; saw cutting for trenching or demolition; drilling anchors for equipment, railings, and structural attachments; and investigative work on aging buildings.
Coring and Drilling
A core drill does not need much room to create major damage. Before coring, scanning can help identify reinforcement and likely embedded conduits in the proposed opening. It also allows the crew to review whether the requested hole location is practical before mobilizing equipment.
For anchor drilling, depth matters just as much as location. A scan may identify an object below the surface, while the installation requirements determine whether a shorter anchor, a different layout, or an engineered solution is needed. Do not assume that a shallow hole is automatically safe.
Saw Cutting and Demolition
Saw cuts can intersect multiple embedded items along a single line. A scan gives the cutting crew marked information across the planned path, not just at one point. For larger removals, the scan can support a safer demolition sequence and help the team avoid cutting structural elements that require engineering review.
Post-tensioned slabs deserve particular caution. Tendons are commonly present in parking structures, elevated decks, multi-family buildings, and some commercial slabs. Their location, depth, and spacing can vary. Treat any suspected post-tension condition as a serious safety issue until it has been properly investigated.
Renovation and Facility Work
Renovations often involve the greatest uncertainty. A building may have been modified several times, with conduits and piping added where original drawings do not show them. Property managers and facility teams should schedule scanning before tenant improvements, equipment installations, floor penetrations, and layout changes that require fastening into slabs or walls.
For residential work, the same principle applies. Before cutting a basement floor for plumbing, drilling into a garage slab, or removing part of a patio or foundation, verify what may be hidden in the concrete. Private lines and unknown construction conditions can be costly to correct after the fact.
What to Expect During a Concrete Scan
A productive scan starts with a clear scope. The technician needs to know where work is planned, what type of work will occur, and how deep the proposed cut or penetration will be. A marked layout, work order, or field discussion helps focus the investigation on the areas that matter most.
The scanning surface should be reasonably accessible. Remove loose debris, stored materials, and standing water when possible. Surface coatings, metal decking, dense reinforcement, moisture, slab thickness, and limited access can all affect the quality or depth of the scan. These conditions do not always prevent scanning, but they may change the method, the level of certainty, or the time required.
During the work, the technician scans the designated area in multiple directions and marks detected targets on the surface. Markings may identify the approximate position and direction of a target, along with notes about depth when conditions allow. The work area should remain protected after it is marked. Traffic, cleaning, grinding, and weather can remove or obscure markings before the crew begins.
Ask the technician to explain what the markings mean before cutting or drilling starts. The field crew should understand which areas are clear for the intended depth, which areas contain identified hazards, and where additional review is needed. Scanning results are most useful when they are communicated directly to the people doing the work.
GPR Is Powerful, but Conditions Matter
GPR is a highly effective non-destructive tool, but it is not a guarantee that every object will be visible in every slab. Concrete with heavy reinforcement can create signal interference. Thick concrete may limit depth. Moisture, aggregate composition, multiple layers of steel, and closely spaced utilities can make interpretation more difficult.
That is why experience matters. A qualified locating professional does more than operate equipment. They assess the structure, recognize questionable signals, compare findings across scan directions, and communicate limitations honestly. If the results are uncertain, the responsible next step may be additional scanning, a different technology, exploratory work, or engineering input.
The same caution applies to a “clear” area. A clear scan result should always be evaluated against the planned work depth, the structure’s known conditions, and the quality of access. It does not replace jobsite safety practices, utility coordination, or structural review where those are required.
How to Prepare for Better Results
Scheduling concrete scanning early gives the project team options. If a planned core location conflicts with reinforcement or a conduit, it is easier to shift the layout before crews, equipment, and trades are waiting on site. Last-minute scans are still far better than cutting blind, but early coordination prevents unnecessary pressure.
Provide available drawings, previous scan records, and details about the structure if you have them. Tell the scanning provider whether the concrete is a slab-on-grade, elevated deck, wall, beam, or precast element. Share the proposed penetration diameter, cut line, anchor depth, and any known electrical or plumbing concerns.
Most importantly, do not treat surface markings as permission for unrelated work. A scan is performed for a defined area and purpose. If the layout changes, the cut depth increases, or the work moves outside the scanned zone, reassess the area before proceeding.
Choosing a Concrete Scanning Provider
Choose a provider based on field experience, equipment capability, and the ability to explain findings in jobsite terms. The lowest quote is not a meaningful savings if a missed hazard causes an injury, damages a critical line, or stops a project for days.
Look for a team that understands both concrete scanning and the work that follows it. They should ask practical questions about cutting, coring, drilling, depth, access, and schedule. They should also be willing to identify limitations rather than overstate what a scan can prove.
For projects across Missouri, Kentucky, Tennessee, and parts of Illinois, Pro Mark Locating provides concrete scanning and subsurface investigation support built around one priority: knowing what is beneath your feet before the work creates a risk. Before the first cut, hole, or anchor is made, give hidden conditions the attention they demand.
